DESCRIPTION

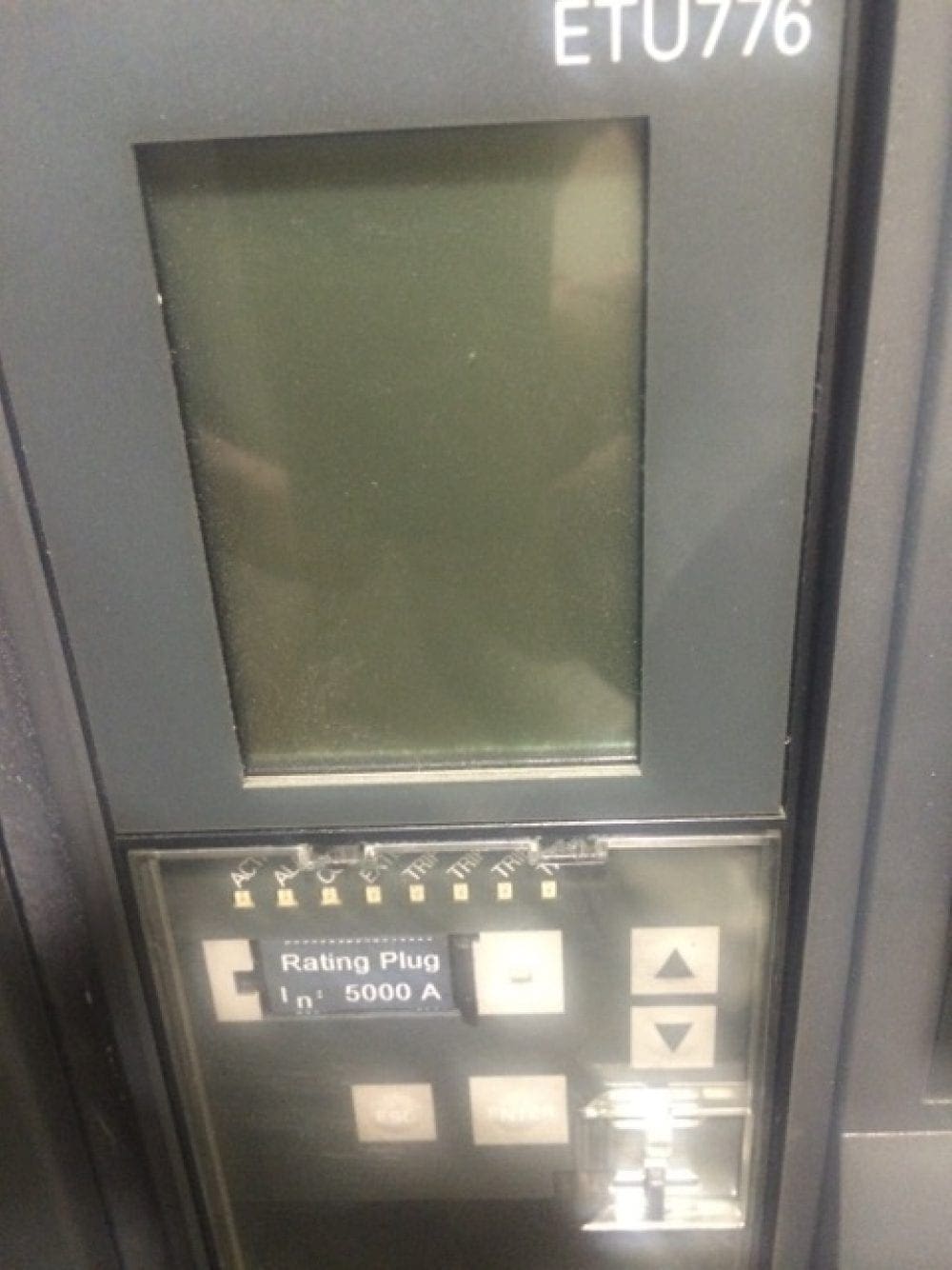

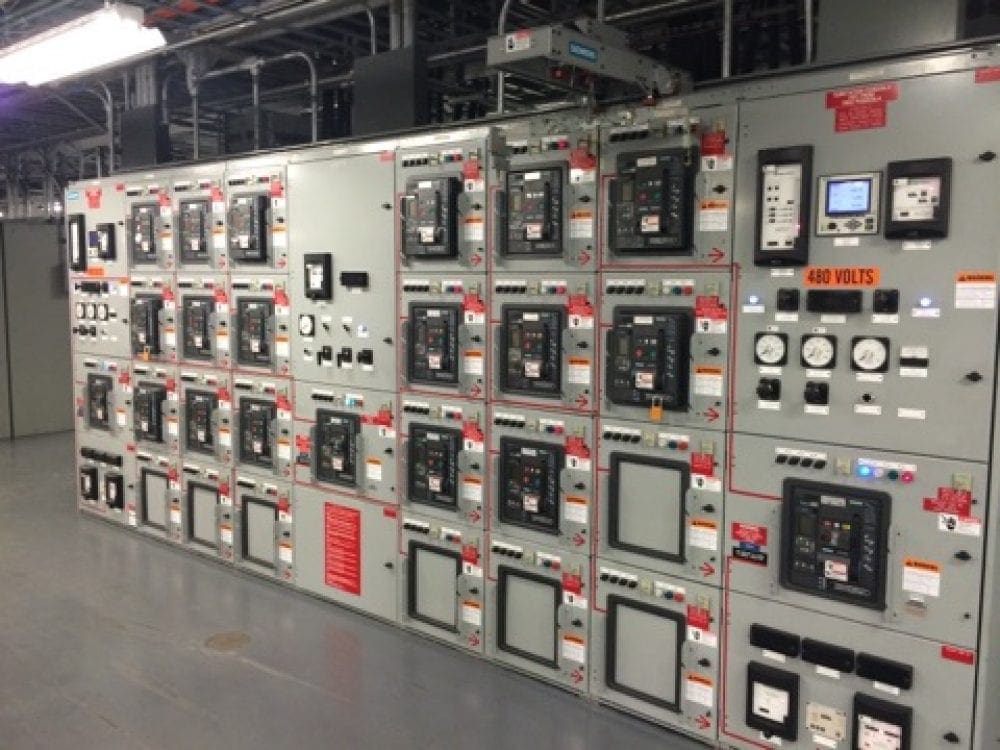

INSTALLED - NEVER USED - PROFESSIONALLY MAINTAINED PROFESSIONALLY DEINSTALLED - CLIMATE CONTROL STORAGE Adjustable plug settings for breakers - 400 Amp Variability AF= Amp Frame, AT= Amp Trip, M.O.= Mechanically Operated, E.O.= Electrically Operated. Switchgear ID: P152USL1 Siemens S.O.# 3002706151-31040 Manufacturer: Siemens Type: WL LV Switchgear Current Rating: 5000 Amp Voltage Rating: 480 Volt Configuration: 3phase, 3 wire Hertz: 50 / 60 Interrupting Rating: 100 KA Main Breaker: QTY 1 5000 AF/AT M.O.& E.O Tie Breaker: QTY 1 5000 AF/AT M.O.& E.O Feeder Breakers: QTY 8 1600 AF / 1200AT M.O.& E.O. Sections: 5 Future Provisions: 4 Single ended source or double ended source substations available . 5000A and 1600A Siemens Type WL Circuit Breakers, Mechanically Operated, Electrically Operated, and adjustable trip settings. Switchgear Features: -Modbus (RS-485) communications to power meter and breakers. -Siemens 9610 Digital Power Meter -Protective Relays , Basler BE1-87T Transformer Differential (ANSI 87T function), Basler BE1-47N Phase Sequence, Under Voltage, Over Voltage (ANSI 47, 27,& 59 function), Basler BE1-50 Timed Overcurrent / Instantaneous (ANSI 50 /51 function), Basler BE1-25 Sync Check (ANSI 25 function) -Siemens TVSS Transient Voltage Surge Suppressor -Arc Flash Safety provisions for “Closed Door Remote Racking Motor” (Limited Racking Motors available) -Mimic bus on front of switchgear -Test plugs for maintenance testing of components -Infrascan ports in rear of switchgear -Siemens switchgear and breakers are currently in production so spare parts and upgrades are readily available.
