Description
INSTALLED – NEVER USED – PROFESSIONALLY MAINTAINED
PROFESSIONALLY DEINSTALLED – CLIMATED CONTROL STORAGE
Adjustable plug seeting for breakers – 400 Amp Variability
AF= Amp Frame, AT= Amp Trip, M.O.= Mechanically Operated, E.O.= Electrically Operated.
Switchgear ID:
P192USL3
Siemens S.O.#
3002706151-42000
Manufacturer:
Siemens
Type:
WL LV Switchgear
Current Rating:
5000 Amp
Voltage Rating:
480 Volt
Configuration:
3phase, 3 wire
Hertz:
50 / 60
Interrupting Rating:
100 KA
Main Breaker: QTY 1
5000 AF/AT M.O.& E.O
Tie Breaker: QTY 1
5000 AF/AT M.O.& E.O
Feeder Breakers: QTY 9
1600 AF / 1200AT
M.O.& E.O.
Sections:
5
Future Provisions:
3
Single ended source or double ended source substations available .

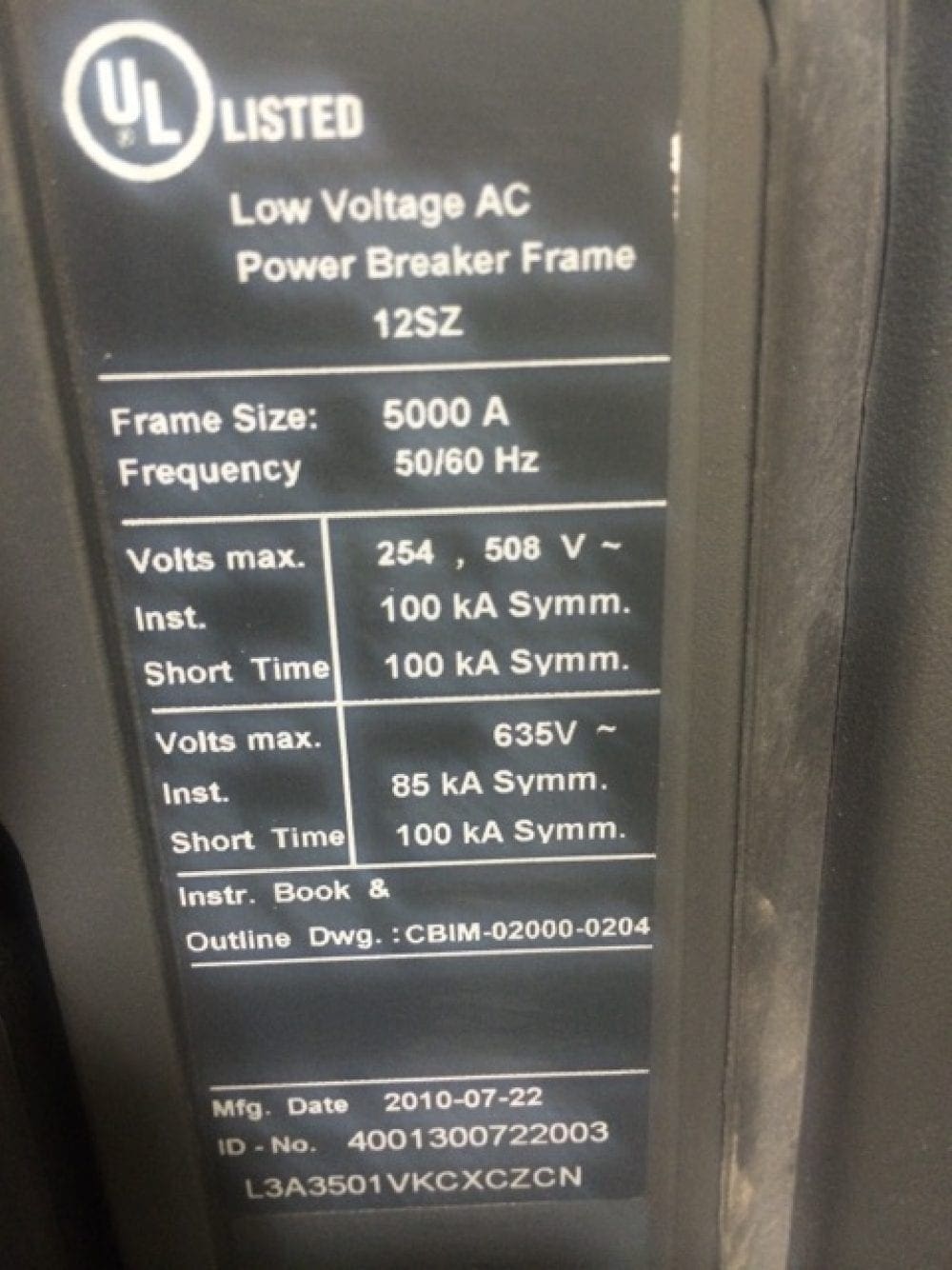

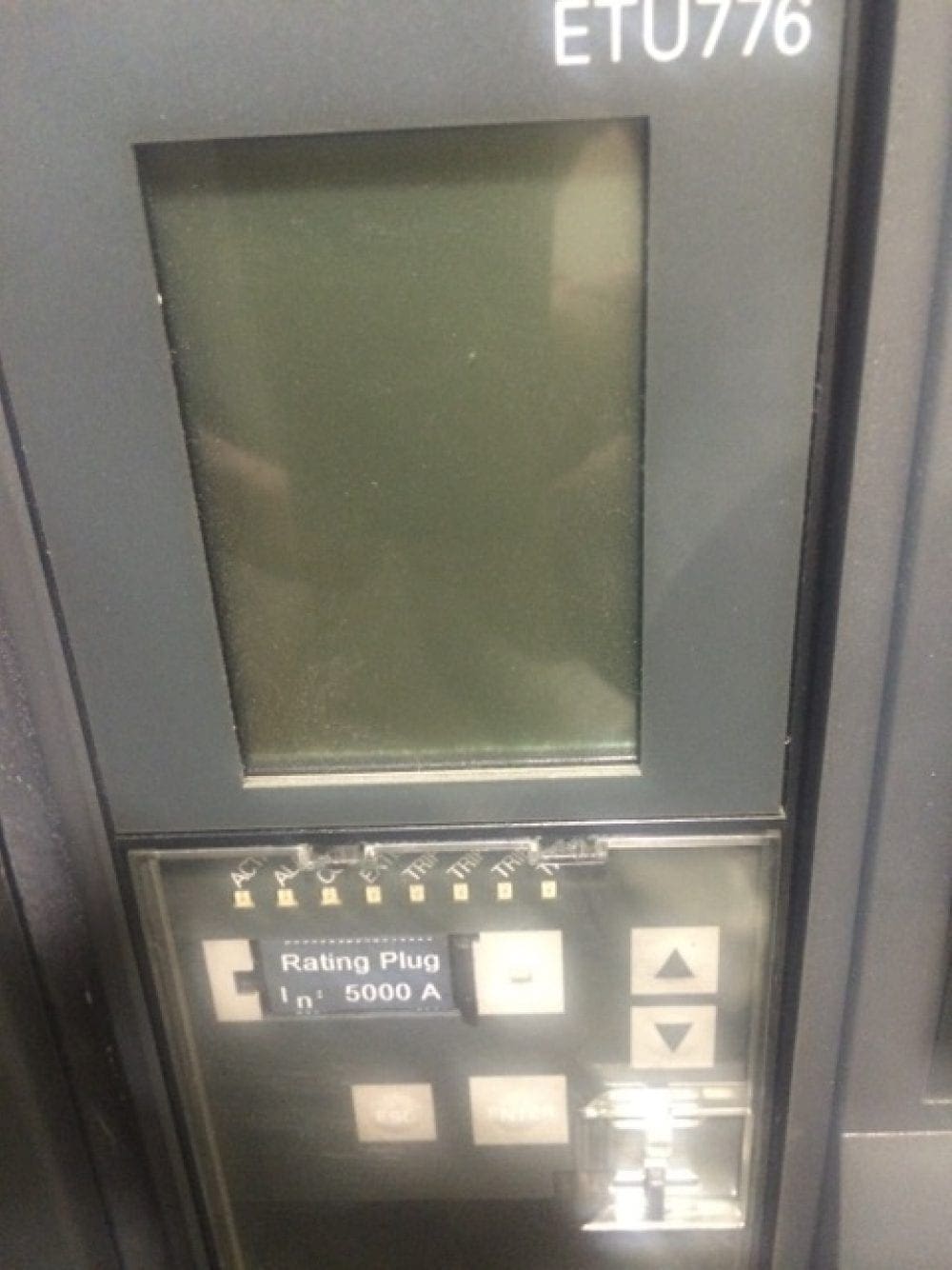

5000A Siemens Type WL Circuit Breakers, Mechanically Operated, Electrically Operated, and adjustable trip settings.
Switchgear Features:
-Modbus (RS-485) communications to power meter and breakers.
-Siemens 9610 Digital Power Meter
-Protective Relays , Basler BE1-87T Transformer Differential (ANSI 87T function), Basler BE1-47N Phase Sequence, Under Voltage, Over Voltage (ANSI 47, 27,& 59 function), Basler BE1-50 Timed Overcurrent / Instantaneous (ANSI 50 /51 function), Basler BE1-25 Sync Check (ANSI 25 function)
-Siemens TVSS Transient Voltage Surge Suppressor
-Arc Flash Safety provisions for “Closed Door Remote Racking Motor” (Limited Racking Motors available)

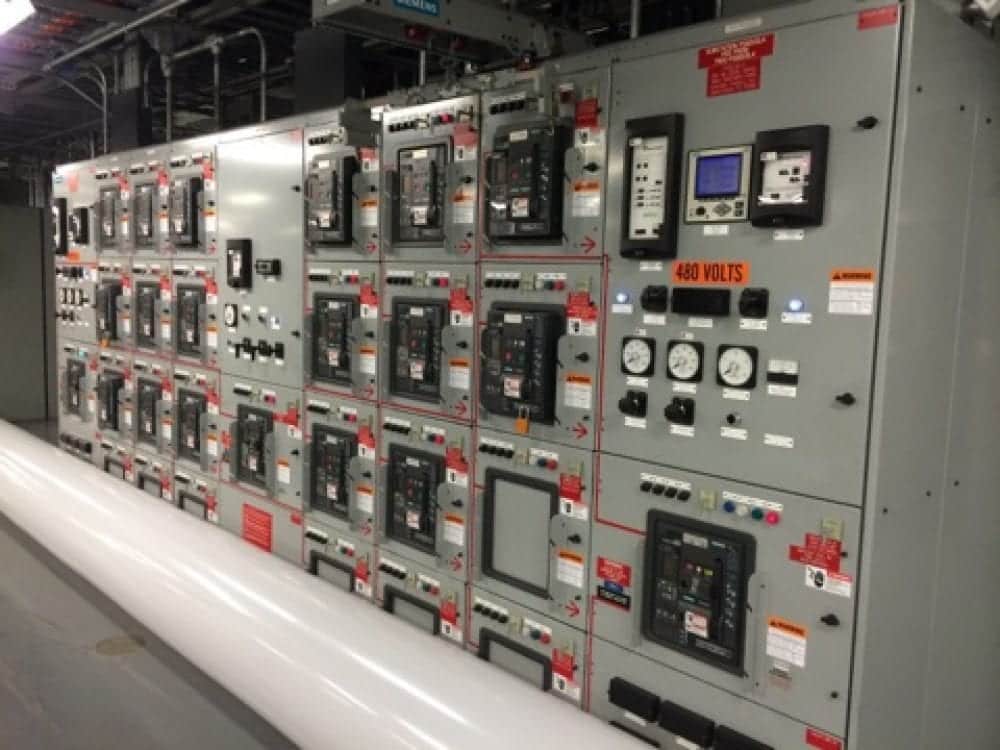

-Mimic bus on front of switchgear
-Test plugs for maintenance testing of components
-Infrascan ports in rear of switchgear
-Siemens switchgear and breakers are currently in production so spare parts and upgrades are readily available.
