Siemens Low Voltage Switchgear – 5 Sections, 3 Future Provisions

Siemens Low Voltage Switchgear – 5 Sections, 3 Future Provisions

Lot Number: Electrical-38 Categories: , , Tag:

ADDITIONAL INFORMATION

Manufacturer

Siemens

DESCRIPTION

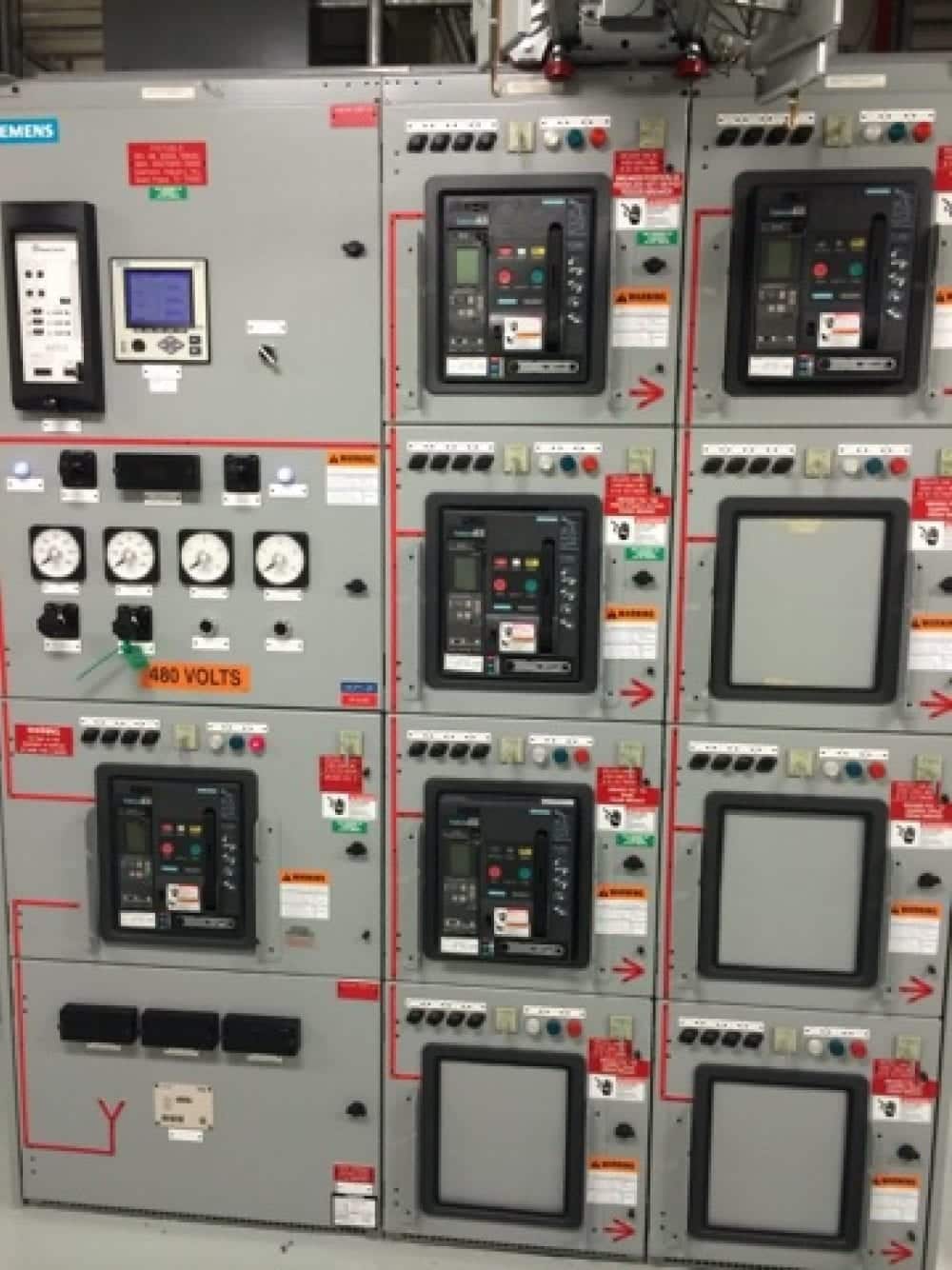

INSTALLED - NEVER USED - MAINTAINED PROFESSIONALLY DEINSTALLED PROFESSIONALLY - CLIMATE CONTROL STORAGE Adjustable plus setting for breakers - 400 Amp Variability AF= Amp Frame, AT= Amp Trip, M.O.= Mechanically Operated, E.O.= Electrically Operated. Switchgear ID: P107USL2 Siemens S.O.# 3002706151-29060 Manufacturer: Siemens Type: WL LV Switchgear Current Rating: 5000 Amp Voltage Rating: 480 Volt Configuration: 3phase, 3 wire Hertz: 50 / 60 Interrupting Rating: 100 KA Main Breaker: QTY 1 5000 AF/AT M.O.& E.O Tie Breaker: QTY 1 5000 AF/AT M.O.& E.O Feeder Breakers: QTY 9 (3)1600 AF / 1200AT & (6)1600 AF / 800AT M.O.& E.O. Sections: 5 Future Provisions: 3 Single ended source or double ended source substations available . 5000A and 1600A Siemens Type WL Circuit Breakers, Mechanically Operated, Electrically Operated, and adjustable trip settings. Switchgear Features: -Modbus (RS-485) communications to power meter and breakers. -Siemens 9610 Digital Power Meter -Protective Relays , Basler BE1-87T Transformer Differential (ANSI 87T function), Basler BE1-47N Phase Sequence, Under Voltage, Over Voltage (ANSI 47, 27,& 59 function), Basler BE1-50 Timed Overcurrent / Instantaneous (ANSI 50 /51 function), Basler BE1-25 Sync Check (ANSI 25 function) -Siemens TVSS Transient Voltage Surge Suppressor -Arc Flash Safety provisions for “Closed Door Remote Racking Motor” (Limited Racking Motors available) -Mimic bus on front of switchgear -Test plugs for maintenance testing of components -Infrascan ports in rear of switchgear -Siemens switchgear and breakers are currently in production so spare parts and upgrades are readily available.

Description

INSTALLED – NEVER USED – MAINTAINED PROFESSIONALLY

DEINSTALLED PROFESSIONALLY – CLIMATE CONTROL STORAGE

Adjustable plus setting for breakers – 400 Amp Variability

AF= Amp Frame, AT= Amp Trip, M.O.= Mechanically Operated, E.O.= Electrically Operated.

Switchgear ID:

P107USL2

Siemens S.O.#

3002706151-29060

Manufacturer:

Siemens

Type:

WL LV Switchgear

Current Rating:

5000 Amp

Voltage Rating:

480 Volt

Configuration:

3phase, 3 wire

Hertz:

50 / 60

Interrupting Rating:

100 KA

Main Breaker: QTY 1

5000 AF/AT M.O.& E.O

Tie Breaker: QTY 1

5000 AF/AT M.O.& E.O

Feeder Breakers: QTY 9

(3)1600 AF / 1200AT & (6)1600 AF / 800AT

M.O.& E.O.

Sections:

5

Future Provisions:

3

Single ended source or double ended source substations available .

5000A and 1600A Siemens Type WL Circuit Breakers, Mechanically Operated, Electrically Operated, and adjustable trip settings.

Switchgear Features:

-Modbus (RS-485) communications to power meter and breakers.

-Siemens 9610 Digital Power Meter

-Protective Relays , Basler BE1-87T Transformer Differential (ANSI 87T function), Basler BE1-47N Phase Sequence, Under Voltage, Over Voltage (ANSI 47, 27,& 59 function), Basler BE1-50 Timed Overcurrent / Instantaneous (ANSI 50 /51 function), Basler BE1-25 Sync Check (ANSI 25 function)

-Siemens TVSS Transient Voltage Surge Suppressor

-Arc Flash Safety provisions for “Closed Door Remote Racking Motor” (Limited Racking Motors available)

-Mimic bus on front of switchgear

-Test plugs for maintenance testing of components

-Infrascan ports in rear of switchgear

-Siemens switchgear and breakers are currently in production so spare parts and upgrades are readily available.
