| Year | 2010 |
|---|---|
| Model Number | WLL2A332 |
| Manufacturer | Siemens |
|---|

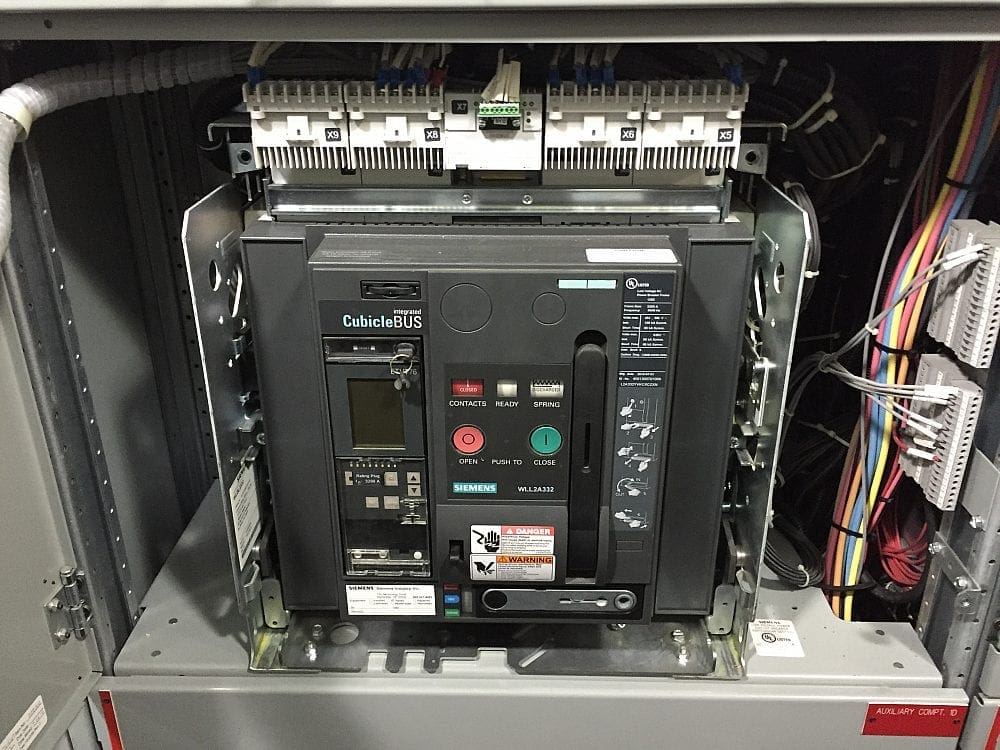

Integrated Cubicle Bus Etu776 Model: WLL2A332 Frame: WL6L2332 (2) Low Voltage AC Power Breaker Frame 12SZ Frame Size: 3200 A Plug Size: 3200 A Frequency: 50/60 Hz Volts max.: 254, 508 V ~ Inst.: 100 kA Symm. Short Time: 85 kA Symm. Volts max.: 635V ~ Inst.: 85 kA Symm. Short Time: 85 kA Symm. Instr. Book & Outline Dwg: CBIM-02000-0204 Mfg. Date: 2010-07-01 ID – No: 4001300701009 L2A332YVKCXCZXN
Integrated Cubicle Bus
Etu776
Model: WLL2A332
Frame: WL6L2332
(2) Low Voltage AC
Power Breaker Frame
12SZ
Frame Size: 3200 A
Plug Size: 3200 A
Frequency: 50/60 Hz
Volts max.: 254, 508 V ~
Inst.: 100 kA Symm.
Short Time: 85 kA Symm.
Volts max.: 635V ~
Inst.: 85 kA Symm.
Short Time: 85 kA Symm.
Instr. Book &
Outline Dwg: CBIM-02000-0204
Mfg. Date: 2010-07-01
ID – No: 4001300701009
L2A332YVKCXCZXN
| Year | 2010 |
|---|---|
| Manufacturer | Siemens |
| Model Number | WLL2A332 |
| Serial Number | |
| QTY |
