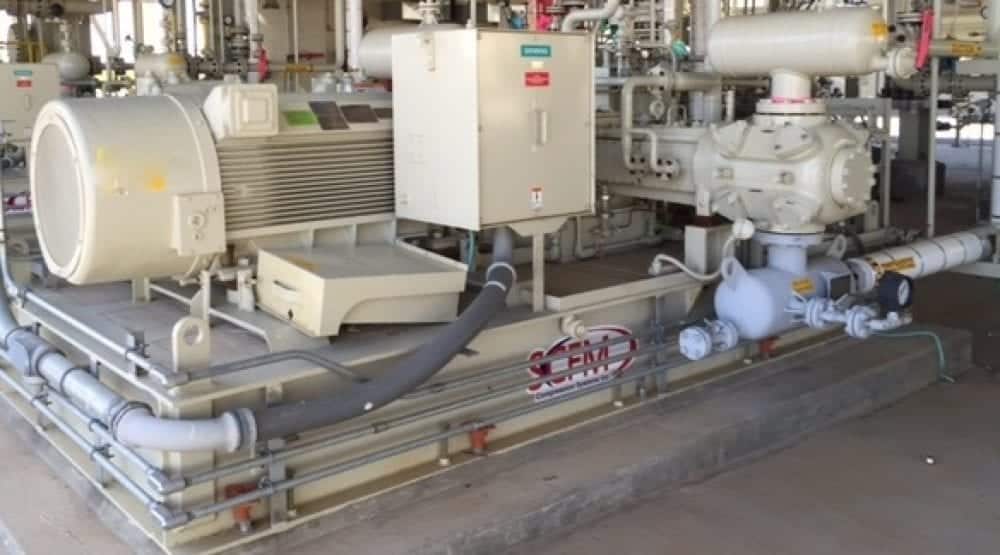

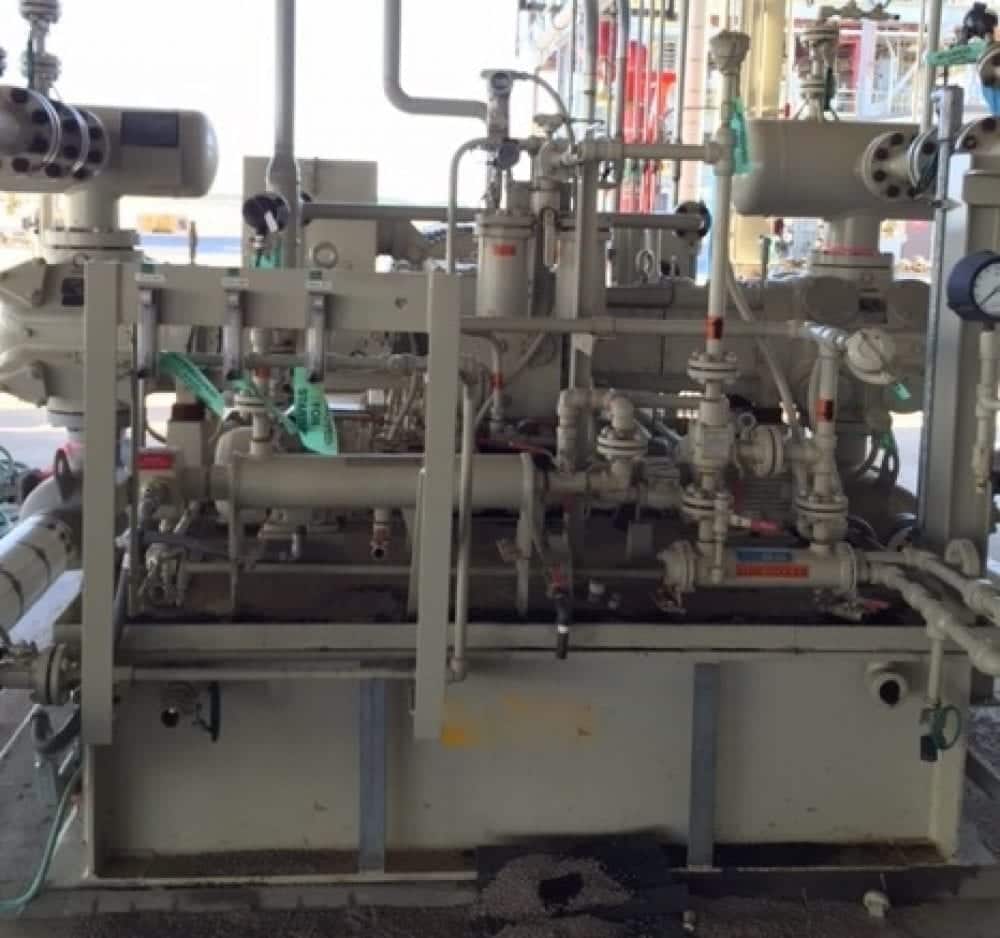

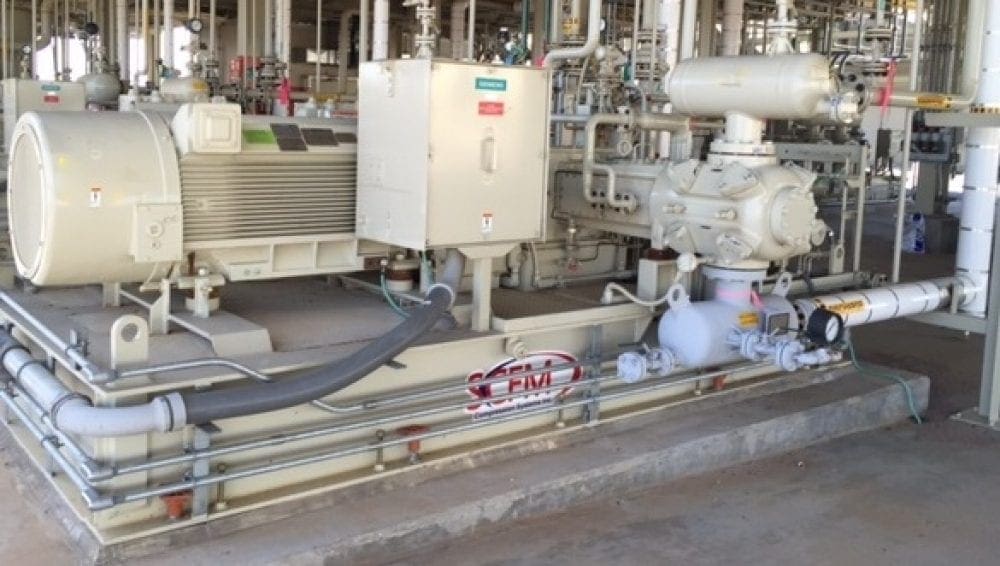

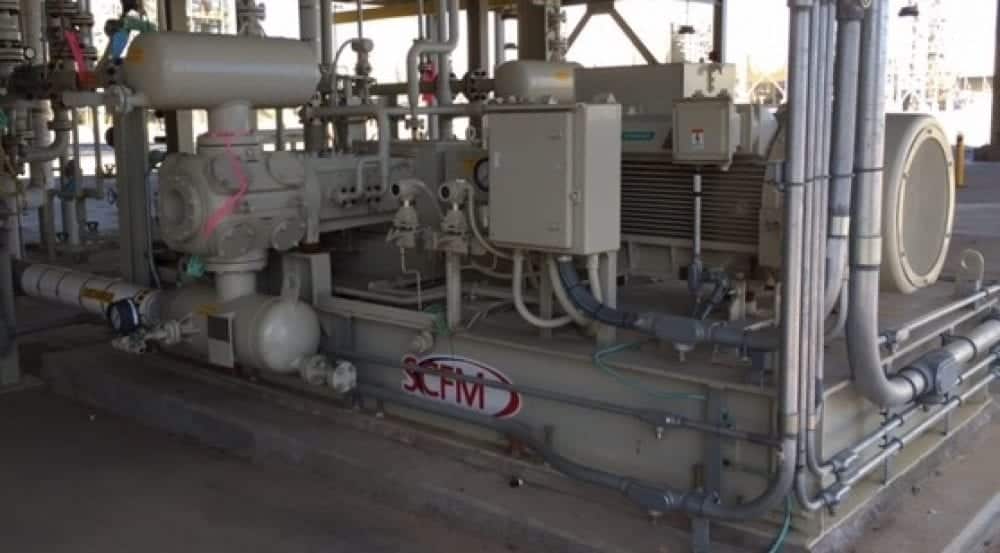

| Year | 2010 |
|---|---|
| Model # | JGJ/2 |
| Manufacturer | Ariel |
|---|---|
| HP | 200 |
Volts: 4160 Maximum Allowable Working Pressure: 1270 PSIG Frame Rated Speed (RPM): 1200 Minimum Speed (RPM): 900 Maximum Rod Load Tension: 21,000 LBS Maximum Rod Load Compression: 23,000 LBS Normal Lube Oil Pressure: 60 PSI Maximum Lube Oil Temperature: 190 F Lube Oil Pressure Shutdown Settings: 35 PSI
Volts: 4160
Maximum Allowable Working Pressure: 1270 PSIG
Frame Rated Speed (RPM): 1200
Minimum Speed (RPM): 900
Maximum Rod Load Tension: 21,000 LBS
Maximum Rod Load Compression: 23,000 LBS
Normal Lube Oil Pressure: 60 PSI
Maximum Lube Oil Temperature: 190 F
Lube Oil Pressure Shutdown Settings: 35 PSI
| Year | 2010 |
|---|---|
| Manufacturer | Ariel |
| Model # | JGJ/2 |
| Serial # | |
| HP | 200 |
